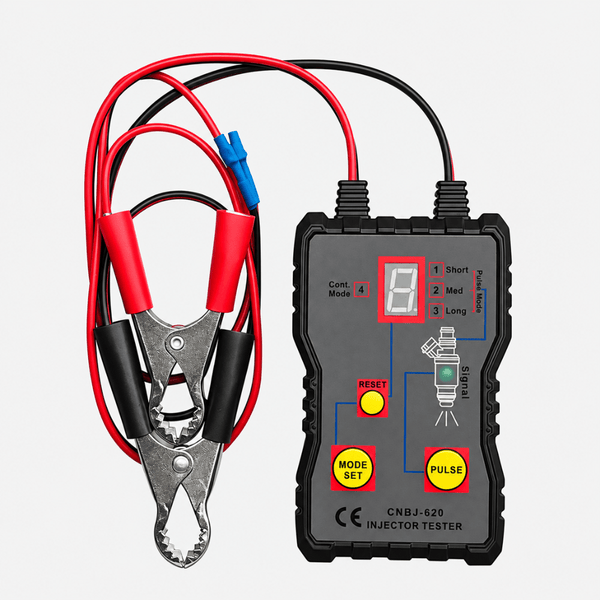

Fuel Injector Pulse Tester – 4-Mode 12V Diagnostic Tool

Test a Suspect Fuel Injector Before Replacing Parts

Rough idle, hard starting, poor acceleration, or suspected injector trouble?

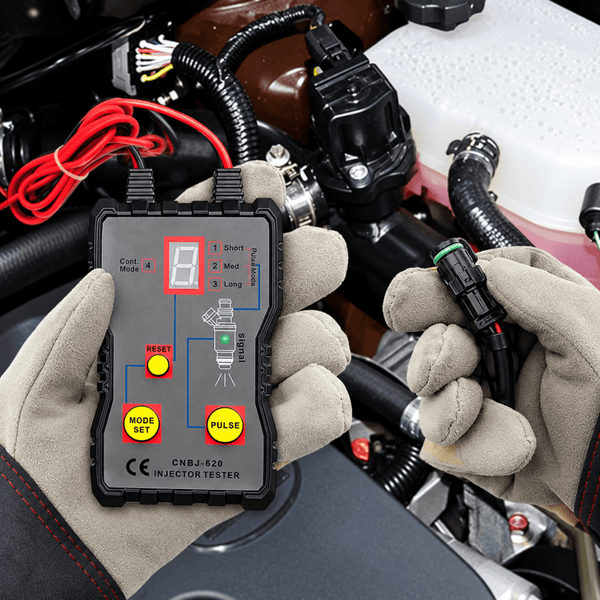

This compact 12V fuel injector tester sends controlled electrical pulses directly to a compatible injector with the engine off, helping you check its response one injector at a time.

Connect. Select a pulse mode. Test the injector.

Why Choose This Fuel Injector Tester?

• Test individual injectors directly instead of relying on guesswork

• 4 selectable pulse modes for different testing patterns

• Powered by your vehicle's 12V battery — no separate power supply

• Digital mode display makes the selected test easy to see

• Signal indicator shows when a pulse is being sent

• Compact enough for your toolbox, garage, or workshop

Check Injector Response Before Replacing It

When you suspect a fuel injector problem, replacing parts without testing can get expensive quickly.

This tester lets you electrically activate a compatible injector with the engine off, helping you determine whether it responds to a controlled pulse signal.

Use it to help troubleshoot suspected:

• Injectors that fail to respond electrically
• Non-responsive injectors
• Uneven injector behavior
• Injector-related starting or idle problems

For more complete diagnosis, combine injector activation testing with the appropriate vehicle service procedure and, where applicable, a compatible fuel-pressure or flow test.

4 Pulse Modes for More Flexible Testing

Different test situations may require different pulse patterns.

The tester provides four selectable modes:

Mode 1 — Single Pulse
One pulse with an approximate width of 255 ms.

Mode 2 — Short Pulse Sequence
50 pulses, approximately 7 ms per pulse.

Mode 3 — Long Pulse Sequence
100 pulses, approximately 3.5 ms per pulse.

Mode 4 — Continuous Pulse
Continuous output at approximately 50 pulses per 1450 ms, with an approximate 7 ms pulse width.

Simply press MODE SET to select your test pattern and PULSE to activate the injector.

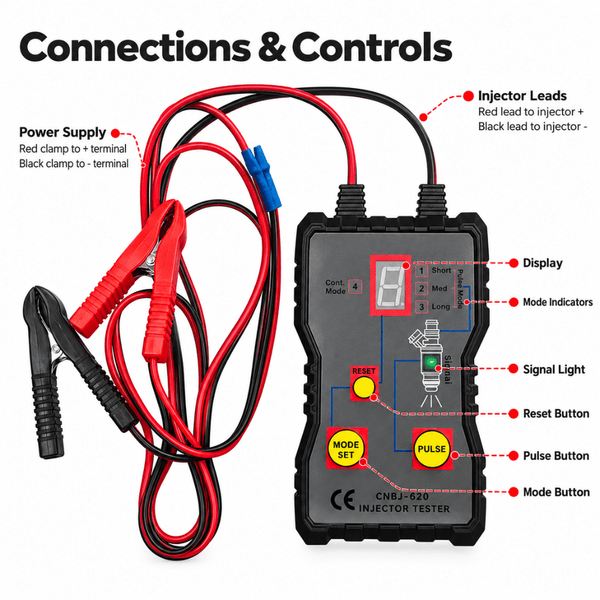

Simple Controls. No Complicated Menus.

No laptop. No app. No complicated scanner interface.

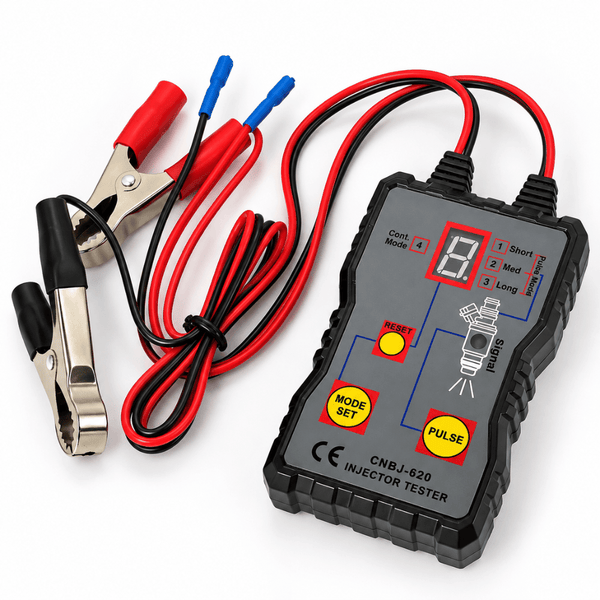

The front panel gives you three straightforward controls:

• MODE SET — select the pulse pattern

• PULSE — send the test signal

• RESET — reset the tester before changing modes

The digital display shows the selected mode, while the indicator light confirms pulse output.

Powered Directly From a 12V Car Battery

Connect the supplied red and black battery clips to a standard 12V automotive battery.

That makes the tester convenient for:

• Garage troubleshooting
• Workshop use
• On-vehicle troubleshooting
• DIY automotive diagnostics

No wall outlet or separate power adapter is required.

Know Exactly What This Tool Does

This is an injector pulse tester, not an OBD scanner.

It does not:

• Read or clear fault codes
• Measure fuel pressure by itself
• Automatically identify the exact cause of an injector fault
• Clean or flush an injector by itself

Its job is to send controlled electrical pulse signals to a compatible fuel injector so you can test its response.

That makes it a useful complement to other diagnostic tools rather than a replacement for full fuel-system testing.

Perfect For

• DIY vehicle owners
• Professional mechanics
• Automotive workshops
• Injector troubleshooting
• Rough-idle diagnosis
• Hard-start troubleshooting
• Suspected injector-response problems
• Comparing individual injector behavior
• Use alongside compatible fuel-pressure testing equipment

How to Use

1. Turn the Engine Off

The vehicle engine must be completely off before testing.

Work in a well-ventilated area and keep fuel away from sparks, flames, and hot engine components.

2. Disconnect the Injector Connector

Disconnect the electrical connector from the injector you want to test.

Connect the tester's pulse output leads to the compatible injector terminals according to the appropriate vehicle/injector procedure.

3. Connect the 12V Battery

Connect:

Red battery clip → Positive (+)
Black battery clip → Negative (–)

4. Select Your Pulse Mode

Press MODE SET until the desired mode appears on the display.

5. Send the Test Pulse

Press PULSE.

The signal indicator illuminates while the tester sends the selected pulse pattern to the injector.

After testing, use RESET before selecting another mode when required.

Product Details & Specifications

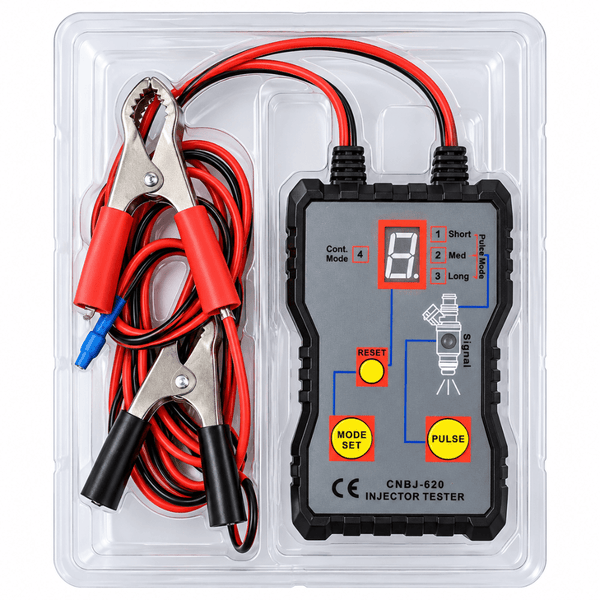

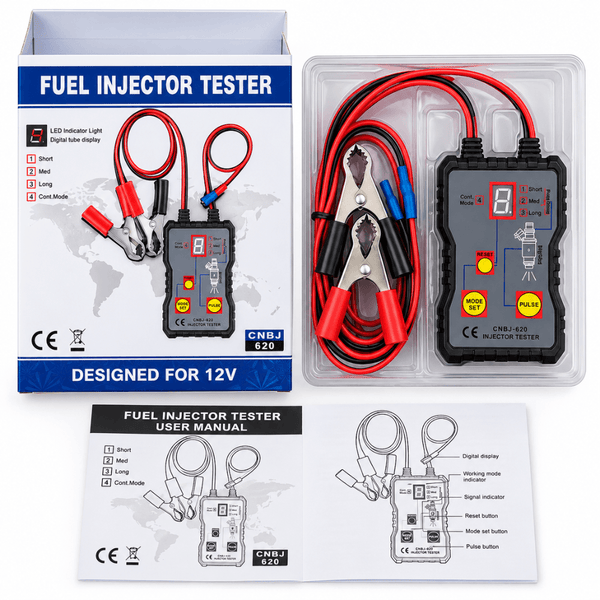

What's Included

• 1 × Fuel injector pulse tester
• Integrated red/black 12V battery power leads
• Injector pulse output leads
• 1 × Instruction manual
