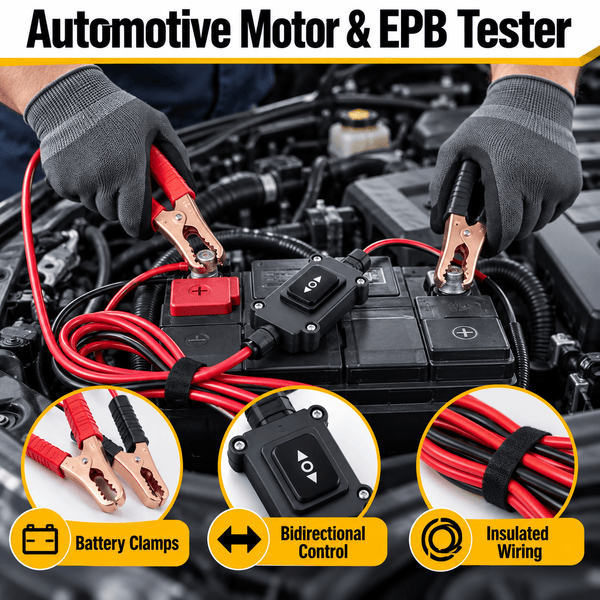

EPB Emergency Release Tool – Direct 12V Motor Control

Release, Retract & Test EPB Motors Directly

Stuck electronic parking brake? Replacing rear brake pads or servicing an EPB caliper?

This compact 12V tool gives you direct forward and reverse control of compatible EPB motors, helping you retract, extend and test the actuator during brake service.

Connect. Select the direction. Control the motor.

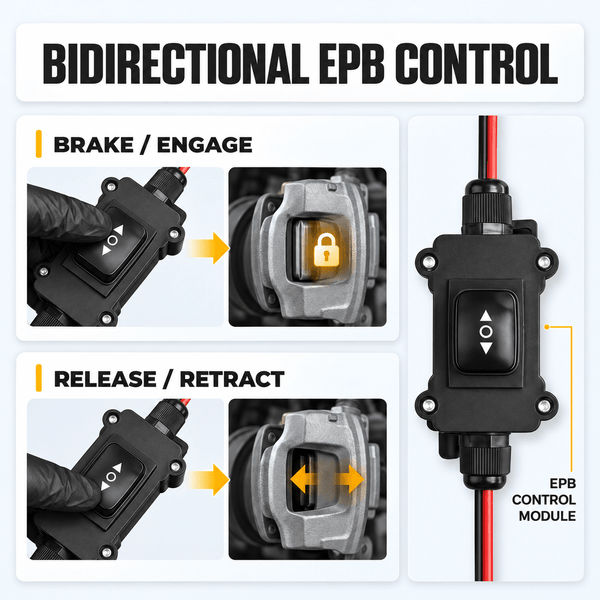

✓ Forward & reverse EPB motor control
✓ Dedicated connector + 4 universal terminal leads

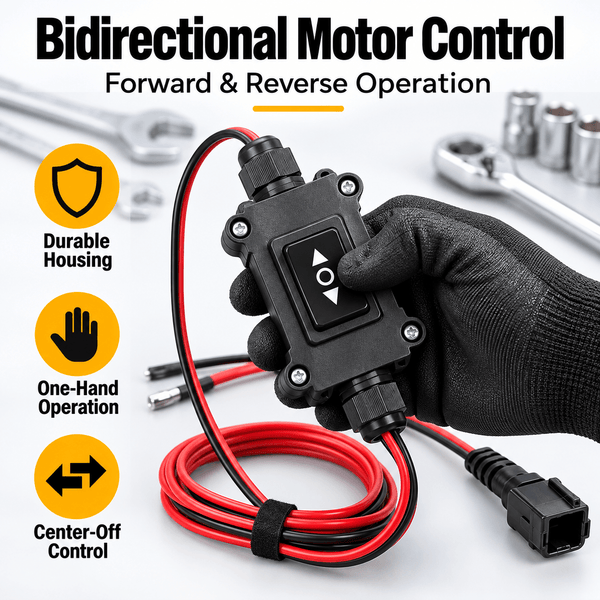

✓ Forward / Neutral / Reverse switch
✓ Built-in 5A fuse protection
✓ Simple direct operation

Make EPB Brake Service Easier

Connect directly to a compatible EPB motor and control its movement without mechanically forcing the caliper.

Perfect for:

• Rear brake pad replacement
• Brake rotor replacement
• EPB caliper servicing
• Stuck parking brakes

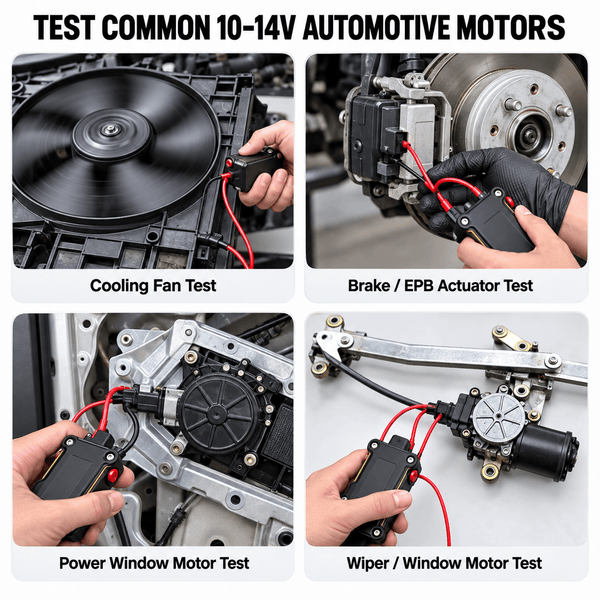

• EPB motor testing

Test Before Replacing Parts

Direct motor control helps you check whether the EPB actuator responds before replacing components unnecessarily.

Note: This tests the motor itself. It does not diagnose the vehicle control module, sensors or wiring.

Wide Connection Flexibility

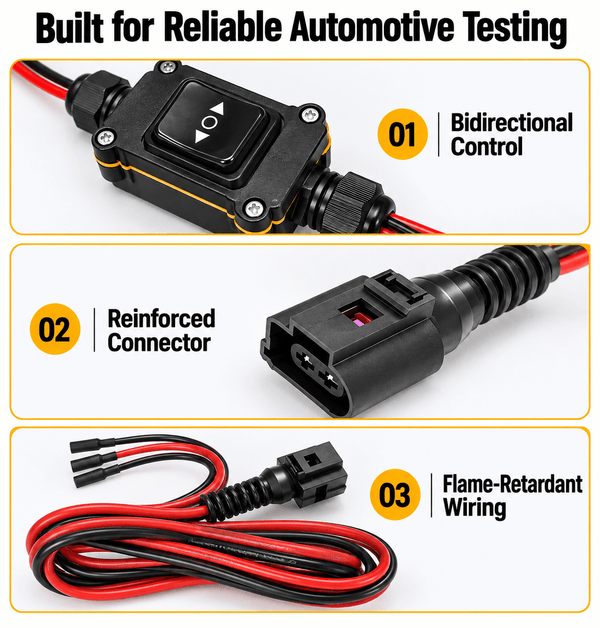

Includes a dedicated EPB connector plus 4 universal terminal leads for broader connection options.

Designed for compatible 12V EPB motors within the tool's protected electrical range.

Not sure if it fits your vehicle? Send us your year, make and model before ordering.

Built-In Protection

5A Fuse Protection – Helps protect against excessive current.

Reverse-Polarity Protection – Helps protect the tool if battery connections are accidentally reversed.

Important: Stop powering the motor once the required movement is complete. Do not continue operating a stalled motor or one that has reached its travel limit.

How to Use

1. Secure the vehicle and use wheel chocks.

2. Check whether the vehicle requires EPB service mode.

3. Disconnect the EPB motor from the vehicle wiring.

4. Connect the appropriate supplied lead.

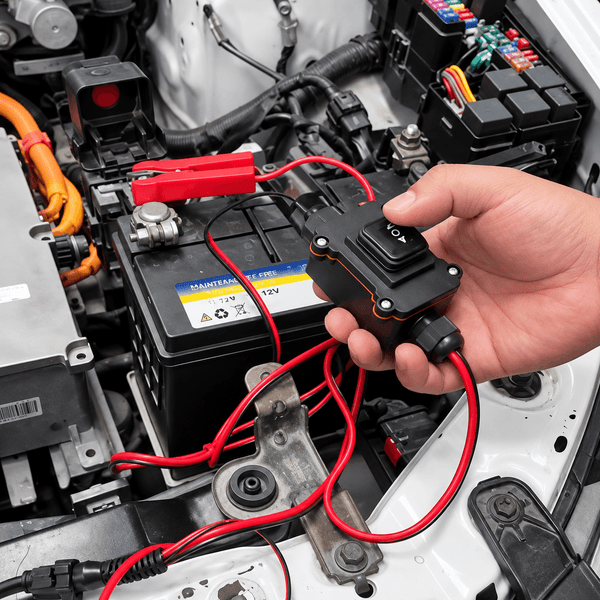

5. Connect the tool to a 12V power source (DC 10–14V).

6. Select the required direction.

7. Return the switch to Neutral when the movement is complete.

8. Reconnect the vehicle system and perform any required reset or calibration.

Compatibility

Designed for compatible 12V electronic parking-brake motors using the supplied connector or universal terminal leads.

Vehicle EPB systems and connector configurations vary.

If you're unsure, send us your year, make and model and we'll help you check compatibility.

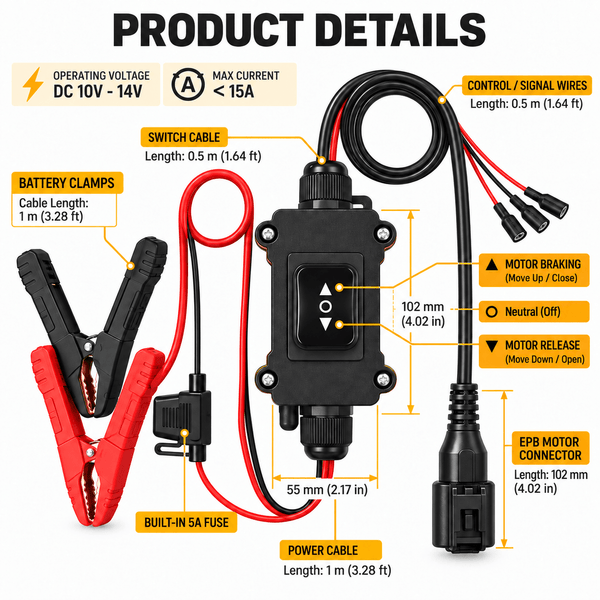

Specifications

• Function: Direct EPB motor control
• Control: Forward / Neutral / Reverse
• Voltage: DC 10–14V
• Protection: 5A fuse + reverse-polarity protection
• Connection: Dedicated EPB connector + universal terminal leads
• Power cable: 1 m / 3.28 ft
• Control cable: 0.5 m / 1.64 ft
• Dimensions: Approx. 102 × 55 mm / 4.02 × 2.17 in

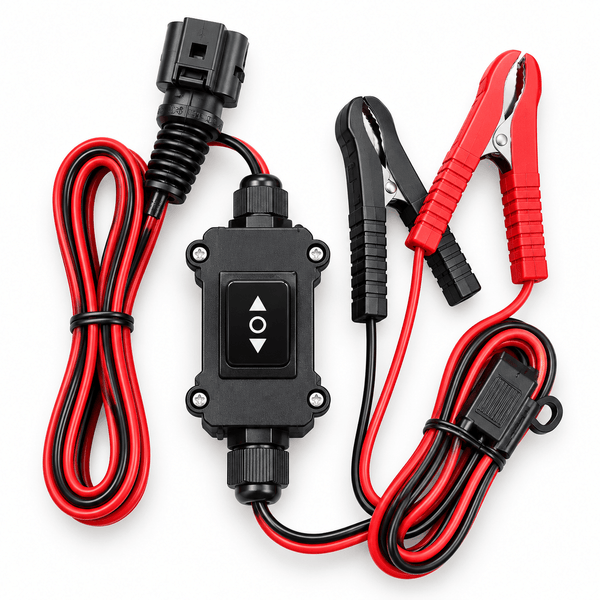

What's Included

• 1 × EPB controller tool
• 1 × Battery clamp cable
• 1 × EPB motor connector lead
• 4 × Universal terminal leads
• 1 × User manual

Important to Know

This is a direct EPB motor-control tool, not an OBD/ABS diagnostic scanner.

It does not read fault codes, clear codes or perform vehicle-specific electronic calibration.
