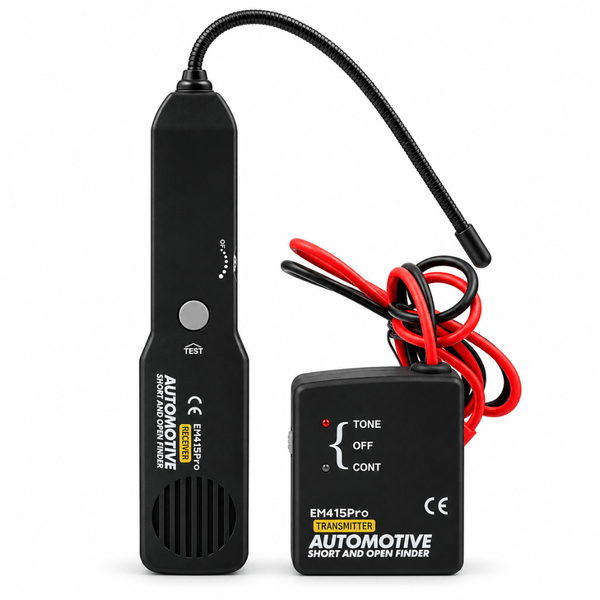

EM415PRO Automotive Wire Tracer – 6–42V Short & Open Circuit Finder

Find Hidden Wiring Faults Faster

A single broken wire or short circuit can turn into hours of electrical troubleshooting.

The EM415PRO Automotive Wire Tracer helps you trace hidden wiring and narrow down short circuits, open circuits, broken wires and wiring paths—without cutting into the harness or piercing the insulation.

Connect the transmitter. Follow the signal. Find the problem area.

✓ Helps narrow down short & open circuit faults
✓ Trace hidden wires without piercing insulation
✓ Follow wiring through harnesses, panels & carpets
✓ Adjustable receiver sensitivity
✓ 7" flexible probe for tight spaces
✓ Works with 6–42V DC circuits

Stop Searching Wire by Wire

Vehicle wiring can disappear behind dashboards, panels, carpets and tightly packed harnesses.

Instead of manually inspecting every section, the EM415PRO sends a tracing signal through the circuit.

Move the receiver along the wiring path and use the audible signal and indicators to help determine where the circuit runs and where the fault may be located.

Less unnecessary disassembly. Faster electrical troubleshooting.

Find Shorts, Opens & Broken Wires

Short Circuits

Follow the circuit and narrow down the area where an unwanted connection may be occurring.

Open Circuits

Trace the wiring path to help locate where electrical continuity has been interrupted.

Broken Wiring

Follow the signal along the harness and identify areas where the signal changes or disappears.

Wire Identification

Trace individual wires through crowded bundles without pulling the entire harness apart.

Trace Hidden Wiring Without Piercing Insulation

The receiver detects the transmitter signal without requiring you to pierce the wire insulation.

The 7-inch flexible probe can bend into difficult areas around:

• Dashboards
• Fuse boxes
• Wiring harnesses
• Interior panels
• Carpets
• Connectors
• Tight engine-bay areas

Adjustable sensitivity lets you fine-tune signal detection for different tracing situations.

Built for Automotive Electrical Troubleshooting

Suitable for compatible 6–42V DC electrical systems found in:

• Cars
• Trucks
• SUVs
• Trailers
• RVs
• Boats
• Tractors
• Other low-voltage DC systems

Ideal for DIY vehicle owners, mechanics, automotive electricians and repair shops.

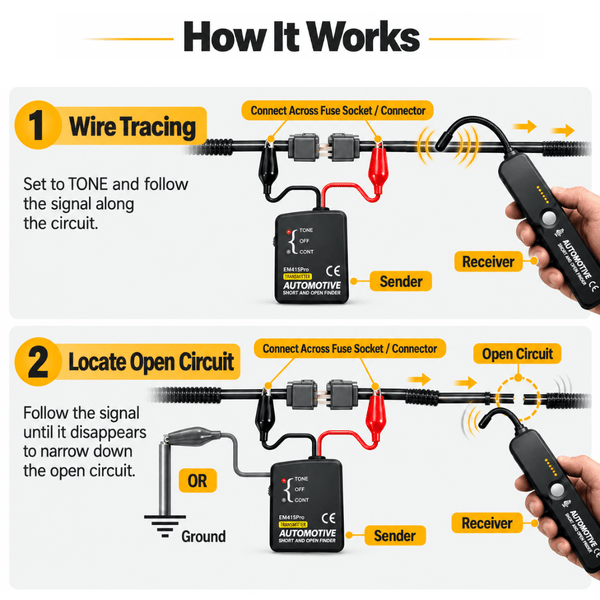

How It Works

1. Connect the Transmitter

Connect the transmitter to the circuit being tested.

Depending on the circuit, this can include connecting in place of a fuse, across a connector, in series with an open wire or at a compatible bulb socket, following the supplied instructions.

2. Follow the Signal

Move the receiver probe along the suspected wiring path and adjust sensitivity when needed.

3. Narrow Down the Fault

Listen to the receiver signal and monitor the indicators as you follow the circuit to help identify the problem area.

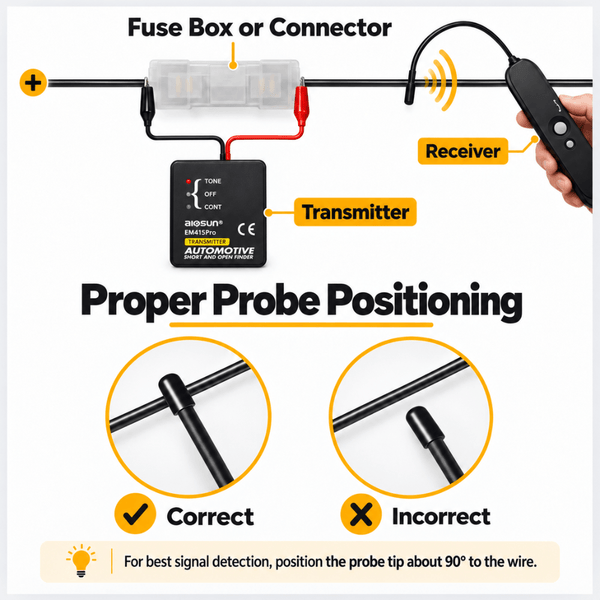

Tip: For better signal detection, position the receiver probe tip approximately 90° to the wire being traced.

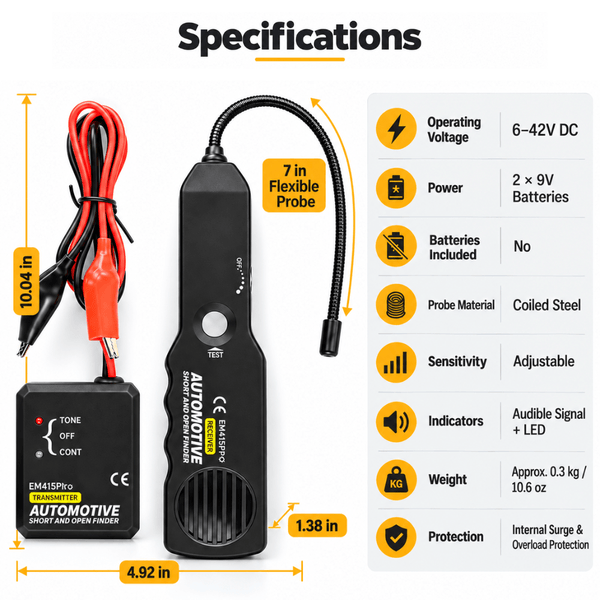

Specifications

• Model: EM415PRO
• Type: Automotive Wire Tracer / Short & Open Circuit Finder
• Operating Voltage: 6–42V DC
• Power: 2 × 9V batteries
• Batteries Included: No
• Probe Length: 7 inches
• Probe Material: Coiled steel
• Sensitivity: Adjustable
• Indicators: Audible signal + LED
• Protection: Internal surge & overload protection
• Color: Black
• Approx. Dimensions: 10.04 × 4.92 × 1.38 in
• Approx. Weight: 9.6 oz / 0.3 kg
• Application: Automotive and compatible low-voltage DC wiring diagnostics

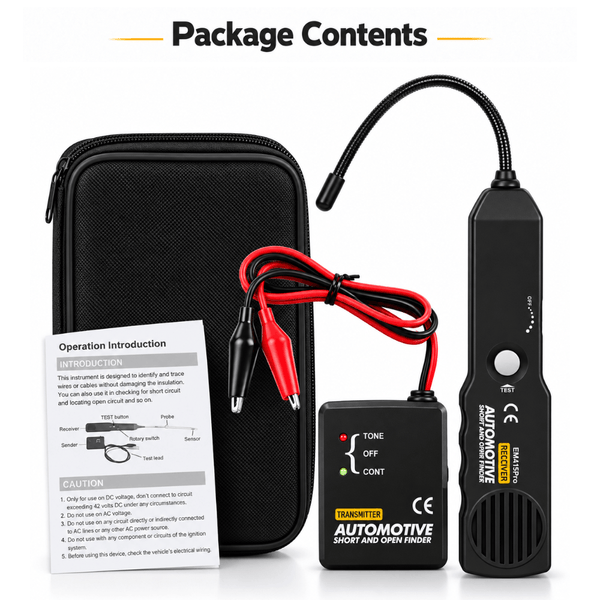

What's Included?

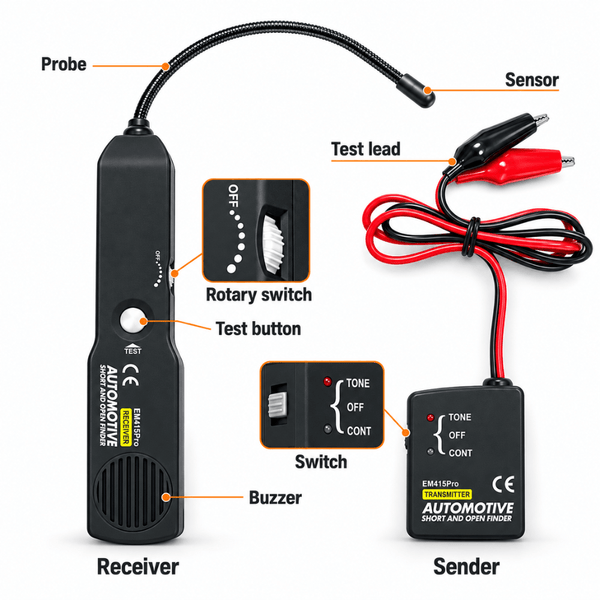

• 1 × EM415PRO Transmitter
• 1 × EM415PRO Receiver with flexible probe

Requires 2 × 9V batteries — not included.

Important Notes

• Designed for 6–42V DC circuits only
• Not intended for household 120V/230V AC mains wiring
• Batteries are not included
• Always follow the supplied connection instructions
• The tool helps trace circuits and narrow down fault locations; additional testing may be required to identify the exact failed component

Frequently Asked Questions

Can it find both short circuits and broken wires?

It is designed to help trace wiring and narrow down short circuits, open circuits and wiring breakpoints.

Does it damage the wire insulation?

No. The receiver can trace the transmitted signal without piercing the insulation.

Can it trace wires behind dashboards and panels?

It is designed to trace wiring through accessible harnesses and bundles, including wiring behind panels and under carpets.

Does it work on 12V and 24V vehicles?

Yes. Both fall within its specified 6–42V DC operating range.

Can I use it on trucks, trailers or RVs?

Yes, provided the circuit being tested operates within the supported 6–42V DC range.

Can I use it on household electrical wiring?

No. It is intended for low-voltage DC circuits and should not be used on 120V/230V AC household mains.

Are the batteries included?

No. The unit requires 2 × 9V batteries, which are not included.

Trace the Wire. Find the Fault.

When an electrical fault is hidden inside a vehicle harness, replacing parts at random gets expensive fast.

Use the EM415PRO Automotive Wire Tracer to follow the circuit, narrow down the problem area and troubleshoot the right section of the wiring system.

Find the fault faster. Fix the right problem.
