7-Way RV Blade Trailer Wiring Tester — Plug & Play LED Diagnosis for Safe Towing

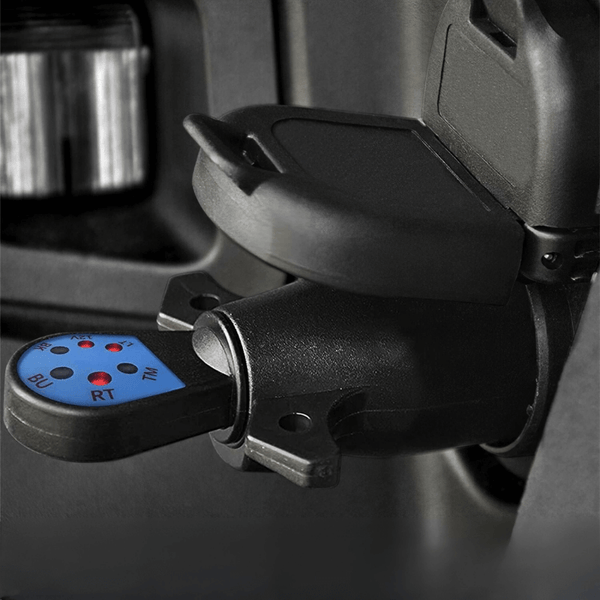

Get road-ready in seconds. Plug this 7-way RV blade tester into your vehicle’s towing socket and instantly verify tail, brake, turn, reverse, AUX and brake-controller circuits with bright, labeled LEDs—no rewiring, no guesswork.

Why Choose This 7-Way RV Blade Tester?

• Instant diagnostics: LED indicators pinpoint good vs faulty circuits at a glance

• Plug & play: Connect directly to your vehicle’s 7-way blade socket—no tools or splicing

• Faster troubleshooting: Identify power/ground issues before hitching your trailer

• Built to last: Weather-resistant housing, impact-resistant body, corrosion-resistant contacts

• Compact & portable: Glove-box size with easy-grip tabs for quick connect/disconnect

• 12V towing ready: Covers the standard US 7-way blade lighting/power functions

Features

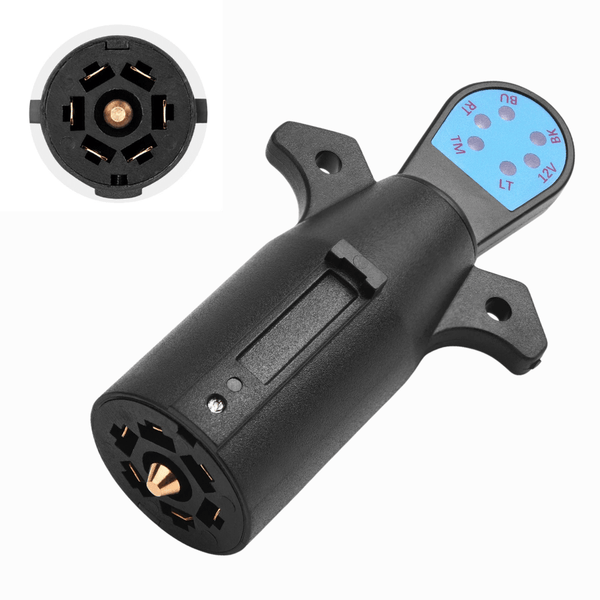

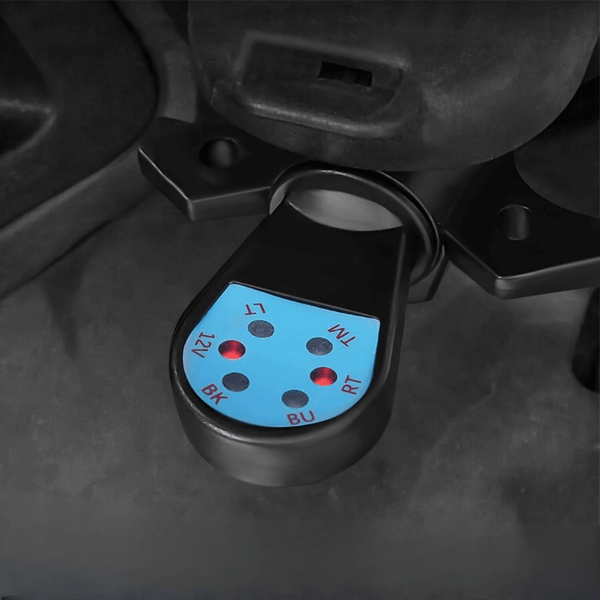

• 6 bright, clearly labeled LEDs: BU (reverse), RT (right turn/brake), TM (taillights), LT (left turn/brake), BK (brake controller output), 12V (aux power)

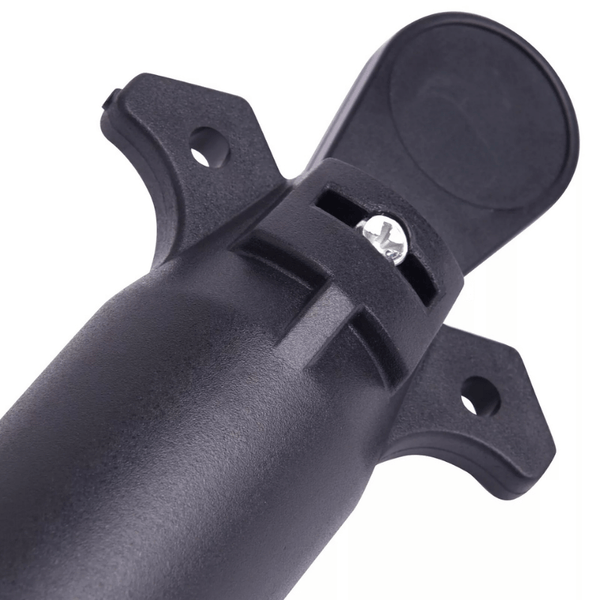

• Durable molded shell with comfortable grip tabs

• Nickel-plated copper contacts for reliable conductivity and wear resistance

• Compatible with standard 7-way RV blade (US) vehicle-side sockets

• Professional, repeatable results in seconds

Benefits

• Safer trips: Confirm lights and critical circuits before towing

• Save time & money: Avoid shop diagnostics and roadside surprises

• Zero modifications: Keep factory wiring intact for warranty/resale

Who Is It For?

• Truck/SUV/RV owners with a 7-way RV blade bumper socket

• Fleet, farm, construction and utility operators who tow frequently

• DIYers and mechanics who need quick, repeatable socket tests

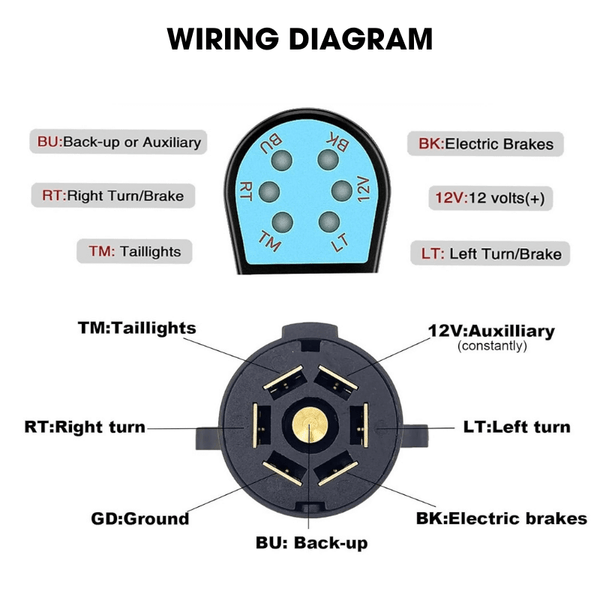

Wiring Diagram & LED Reference (7-Way RV Blade, 12V)

Use this quick reference to match your vehicle/trailer wiring to the tester’s LED readout. Pin colors are common conventions; always verify by function because some harnesses vary.

Pin Functions (by color)

Vehicle Socket (female) and Trailer Plug (male) — same functions, opposite sides.

• BLACK – 12V Aux Power (+)

• BROWN – Tail / Running Lights (TM)

• YELLOW – Left Turn & Stop (LT)

• GREEN – Right Turn & Stop (RT)

• WHITE – Ground (GND)

• PURPLE – Reverse / Backup (BU)

• BLUE – Electric Brake Controller Output (BK)

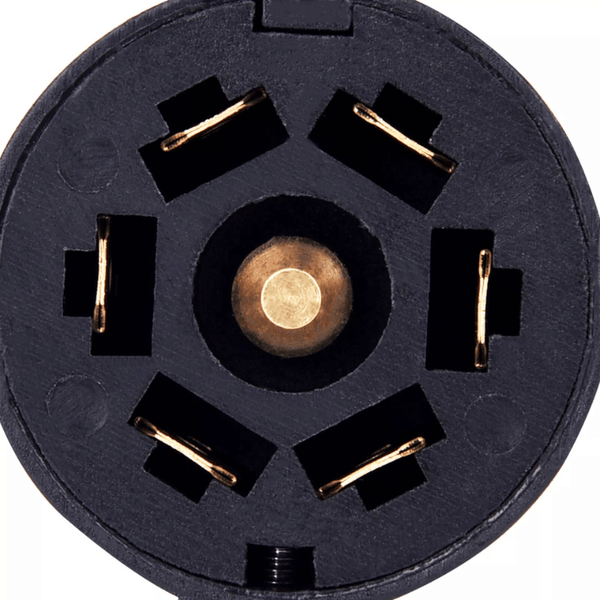

Tip: When viewing the connector face with the indexing tab up, center post is typically 12V or BU depending on vehicle configuration.

LED Indicator Guide (what “good” looks like)

• 12V – Steady ON when the tow socket supplies auxiliary power.

• TM (Tail/Running) – Steady ON when parking/running lights are on.

• LT (Left Turn/Stop) – Flashes with left turn; steady ON when brake is applied.

• RT (Right Turn/Stop) – Flashes with right turn; steady ON when brake is applied.

• BU (Reverse) – Steady ON when vehicle is shifted into reverse.

• BK (Electric Brakes) – Steady ON when manual override is applied on the brake controller; may light during braking if controller outputs.

If something looks wrong

• No LEDs at all: Check fuse(s) and the white ground—poor ground is the most common fault.

• Single LED out: Trace that circuit (bulb, fuse, wiring, connector pin).

• Multiple LEDs dim/flicker: Clean contacts; confirm a solid ground.

• 12V off: Verify the charge/auxiliary power fuse or that your model actually supplies 12V at the socket.

Note: Some OEMs swap the center pin between 12V and Reverse. If your results don’t match the chart, test by function rather than wire color alone.

Compatibility (Read Before You Buy)

• Fits: US 7-way RV blade vehicle-side socket, 12V systems

• Does not fit without adapter: 7-pin round (EU/commercial), 4-flat / 5-flat, 13-pin Euro

• Use case: Tests vehicle socket output. It does not power a trailer by itself.

Product Details

• Interface: 7-way RV blade (vehicle-side socket, US standard)

• Purpose: Quickly confirms the vehicle’s towing socket is supplying correct power and ground before you hitch up

• Circuits Tested (LED-labeled):
  BU – Reverse, BK – Electric brake controller output, 12V – Auxiliary power, LT – Left turn/stop, RT – Right turn/stop, TM – Tail/Running

• Indicators: 6 bright, long-life LEDs with clear legends for instant pass/fail readout

• Build: Impact- and weather-resistant molded housing; corrosion-resistant metal contacts; easy-grip tabs for fast plug/unplug

• Power: Uses vehicle’s 12V from the tow socket (no batteries required)

• Use Case: Pre-trip safety check and fast troubleshooting of fuses/grounds/wiring at the bumper socket

• Compatibility: Fits 7-way RV blade vehicle sockets, 12V systems only

  • Not compatible without adapter: 7-pin round (EU/commercial), 4-flat/5-flat, 13-pin Euro

Specifications

• Interface: 7-way RV blade (vehicle-side)

• Indicators: 6 LED circuits (BU, RT, TM, LT, BK, 12V)

• Materials: Weather-, corrosion- and impact-resistant body; nickel-plated copper contacts

• Power: Uses vehicle’s 12V supply from towing socket

• Size: Compact handheld form factor (glove-box friendly)

What’s Included

• 1 × 7-Way RV Blade Trailer Wiring Tester

• 1 × Quick-start guide

How to Use (Under 60 Seconds)

1. Park safely, ignition on (or accessory).

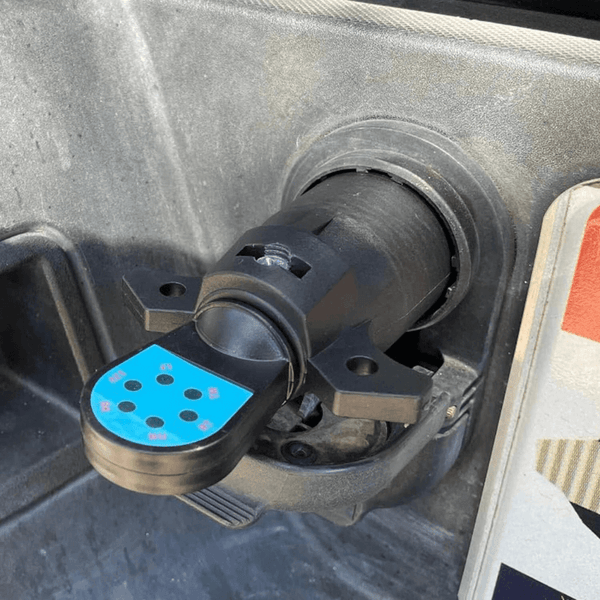

2. Plug tester into the vehicle’s 7-way RV blade socket.

3. Activate lights/signals one by one (left/right turn, brake, tail, reverse).

4. Confirm matching LEDs light correctly; investigate any missing/flickering LEDs (fuse, ground, wiring, controller).

Easy Trailer-Light Troubleshooting (3 Quick Tests)

Fix wiring issues in minutes with the 7-Way RV Blade Trailer Wiring Tester. Follow this simple flow to pinpoint the fault fast.

Test 1 — Check the Tow Vehicle (Socket Test)

1. Plug the tester into the vehicle’s 7-way socket.

2. Have an assistant cycle running lights, left/right turn, brake, reverse/aux.

3. Watch the labeled LEDs—each should light with its function.

Pass: All LEDs behave correctly → vehicle wiring is good. Go to Test 2.
Fail: Any LED stays off or dim → inspect fuses/relays, wiring, or grounds on the vehicle before towing.

Test 2 — Check the Full Connection (Vehicle + Trailer)

1. Connect the trailer to the vehicle as usual.

2. Repeat the light/turn/brake sequence.

3. Walk around and verify each trailer light.

Works now: Likely a loose/oxidized connector fixed by reseating. Apply dielectric grease.
Still failing: Confirms a trailer-side issue. Go to Test 3.

Test 3 — Pinpoint the Trailer Fault

Use the symptom to jump to the most likely cause and fix.

Tip: Keep pins clean and straight; apply a small amount of dielectric grease to prevent corrosion.

By following this 3-step flow, you’ll isolate the problem fast, fix confidently, and get back on the road safely.
