DESCRIPTION
Stop Wiring Guesswork—Diagnose Trailer Connection Issues Instantly!
Tired of trailer wiring headaches, unsafe lights, or costly roadside problems? Our Universal 7 Pin Plug Socket 12V Trailer Tester quickly identifies wiring issues in towing vehicles, trailers, caravans, and RVs with a single button push.
Why Choose This 7 Pin Trailer Socket Tester?
-
Quickly identifies wiring faults, ensuring safe and hassle-free towing
-
Compact, handheld design for easy storage and portability
-
Rugged, durable construction resists high and low temperatures, acids, and alkalis
-
Compatible with a wide range of vehicles and trailers
Features:
-

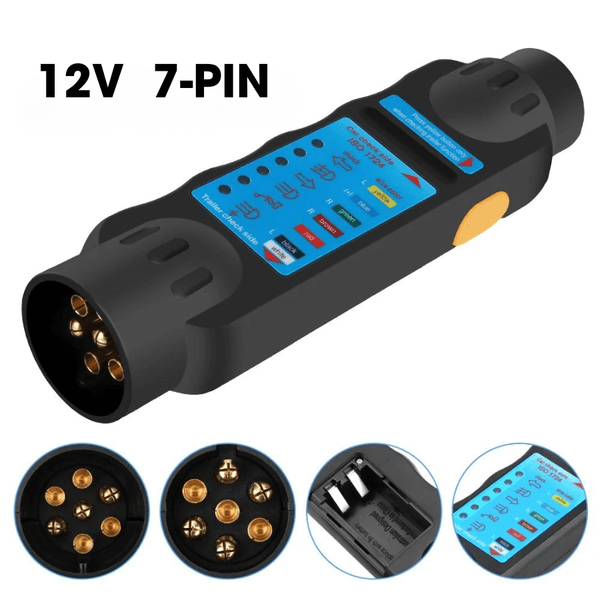

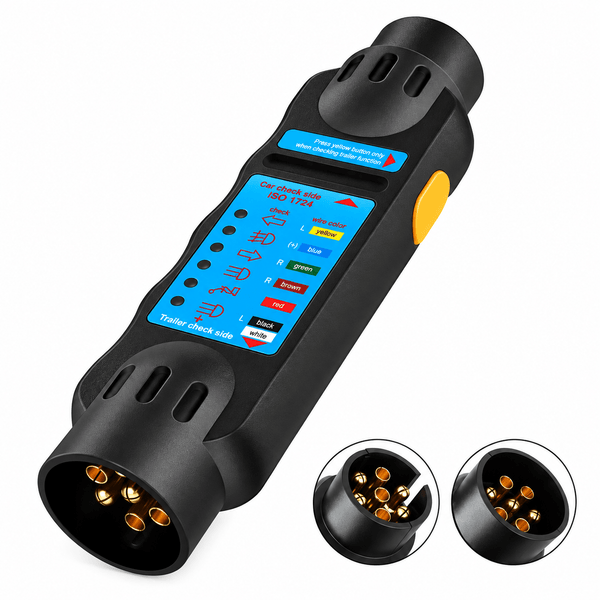

Instant Wiring Diagnosis: Easily plug into your 7 pin socket or plug, press the test button, and receive immediate results.
-
Universal Compatibility: Suitable for European, American, and Australian trailer plugs and sockets.
-
Portable & Easy-to-Use: Compact size designed for effortless handling and carrying.
-
Durable & Reliable: Engineered for longevity under extreme environmental conditions.
Benefits:
-
Enhanced Safety: Verify trailer lights before every trip, reducing risk on the road.
-
Cost-Efficient: Prevent expensive professional diagnostics and repairs.
-
Convenient & Time-saving: Fast and straightforward to use without complicated instructions.
Who Should Use This Tester?
-
RV Owners
-
Truck Drivers
-
Caravan Enthusiasts
-
Boating & Yachting Owners
-
Motorcycle and Bicycle Rack Users
-
Anyone regularly towing trailers or cargo boxes
Specifications:
-
Voltage: 12V
-
Power Source: 9V Battery (not included)
-
Material: Durable, temperature-resistant construction
-
Compatibility: Universal 7 Pin Trailer Connectors
What's Included:
-
1 x 7 Pin Plug Socket Diagnostic Tool
Detailed Test Specifications:
Pin | Function | Wire Color |
---|---|---|
1 | Left-Hand Direction Indicator | Yellow |
2 | Rear Fog Lamps | Blue |
3 | Earth Return | White |
4 | Right-Hand Direction Indicator | Green |
5 | Right-Hand Tail & License Plate Lamp | Brown |
6 | Brake Lights | Red |
7 | Left-Hand Tail & License Plate Lamp | Black |
8 | Reversing Light | Orange |
9 | 12V Permanent Power from Battery | Red/Brown |
10 | 12V Ignition (Charging or Fridge) | Blue/Brown |
11 | Earth for Terminal 10 | Blue/White |
12 | Not Usually Used | Gray |
13 | Earth for Terminal 9 | Green/White |
How to Use the 7 Pin Trailer Socket Tester:
Testing Trailer Plug (Trailer or Caravan side):
-
Insert the trailer's 7-pin plug into the tester socket.
-
Press the yellow test button on the tester.
-
If wiring is correct, all LEDs will illuminate. Each LED corresponds to a specific function (ISO 1724 standard):
-

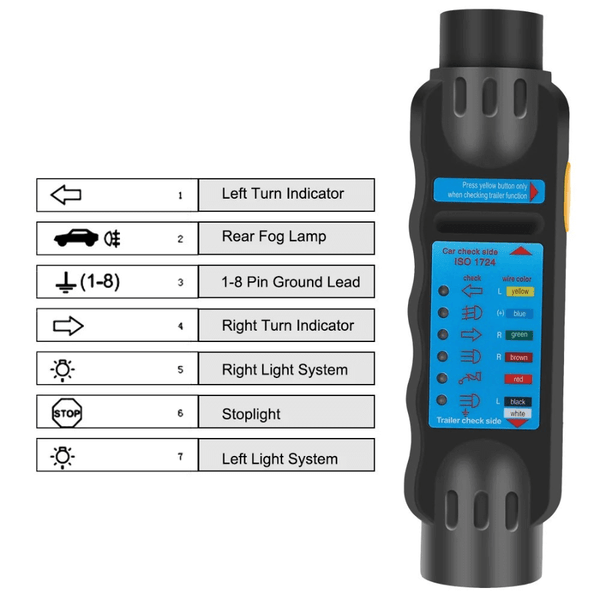

Left Indicator: Yellow LED
-
Fog Light or 12V Supply: Blue LED
-
Earth Connection: White LED
-
Right Indicator: Green LED
-
Right Tail/Rear Light: Brown LED
-
Brake Lights: Red LED
-
Left Tail/Rear Light: Black LED
Important: If any LED doesn't illuminate, the associated wiring is defective. If no LEDs illuminate, verify your connections thoroughly.
Testing Vehicle Socket (Car, Camper, Truck side):
-
Plug the tester directly into the vehicle's 7-pin socket.
-
Press the yellow button on the tester.
-
If wiring is correct, all LEDs will illuminate.
-
Individually test each function:
-
Activate left indicator: Corresponding LED should flash at the same rate.
-
Repeat step above for right indicator, rear lights, fog lights, and brake lights.
-
This diagnostic approach ensures safe towing by confirming your trailer's lighting and wiring integrity before hitting the road.
Troubleshooting Guide
If the LEDs do not behave as expected during testing, refer to the following common issues and solutions:
Issue | Possible Cause (Trailer Side) | Possible Cause (Car Side) |
---|---|---|
Some LEDs do not light up | Wire damage, defective bulbs, or poor contact | Same as trailer side |
None of the LEDs light up | Mass (earth) wire damage or battery issue in the tester | Same as trailer side |
One or more LEDs are weak or flicker | Dirty or damaged plug contacts | Dirty or damaged socket contacts |
All LEDs are weak or flicker | Mass wire issue or low battery in tester | Same as trailer side |
Trailer lights don’t light up, but LEDs do | Trailer wiring short-circuited, blown fuses | — |
Note: If the vehicle uses a fog light interruption relay, test with a 21-watt bulb to ensure accurate results.
This diagnostic table helps you identify and fix the most common wiring and power issues before they become a hazard on the road.
